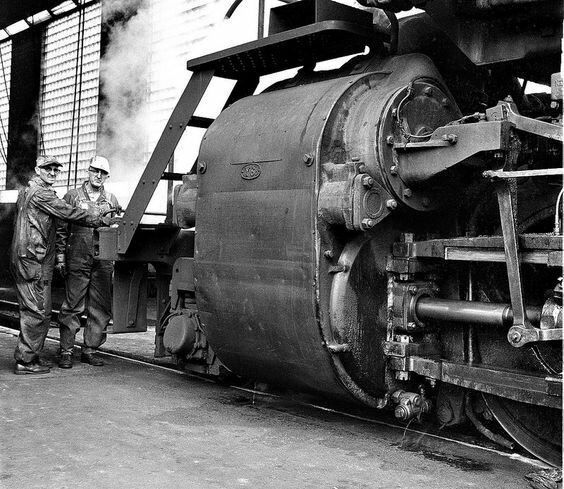

ALM Posted May 16 Posted May 16 Ciao Guardate un po' le dimensioni di questi cilindri di una Mallet americana in confronto ai due ferrovieri. Non so di che locomotiva si tratti, ma propendo per una 2-10-10-2 della Virginian. Ciao ALM 2
ricomon35 Posted May 17 Posted May 17 (edited) @ALM - I think it is a different loco. The access stairway is on the side in the picture you posted, but the Virginian 2-10-10-2 stairway is centered on the front, not on the side. I think it is a Texas type 2-10-4. (1st picture). The stairway, steam chest, chest piston and the eccentric arm match the picture you posted. The V 2-10-10-2 also do not have a leading bogie set that is directly in front of the steam chest, but is mounted on leading trucks in front of the center mounted stairway. (2nd picture) Rico Edited May 17 by ricomon35 1 1
ALM Posted May 18 Author Posted May 18 After a new check, I propend for a C&O 2-6-6-6. In fact, the low-pressure cylinders of the Virginian 2-10-10-2 have a drawer distribution, which is cylindrical in the picture. Even the front trailer could be on the C&O Allegheny. The front cylinders of the Virginian look even bigger...

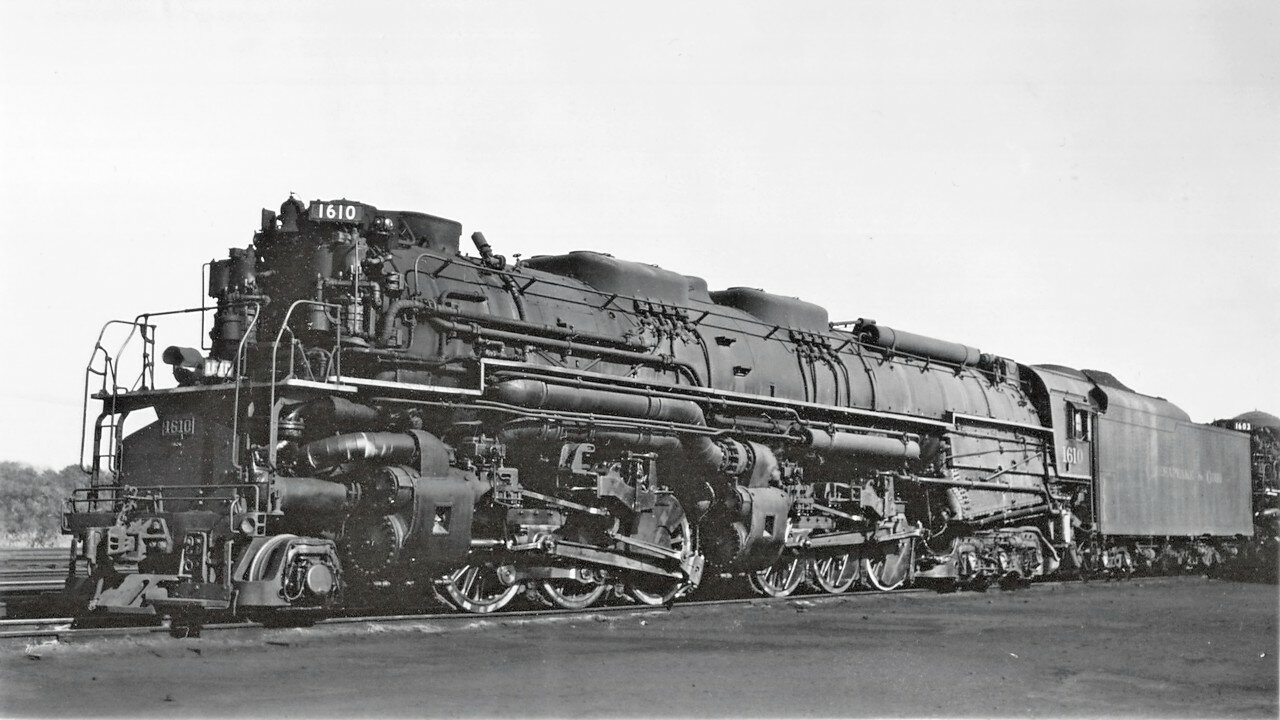

ALM Posted May 18 Author Posted May 18 Here a picture of the C&O 1610 No. It isn't the Allegheny. The front cylinders look different. I think you are right, Ricomon35. The 2-10-4 Texas looks pretty similar.
UP844 Posted May 18 Posted May 18 PRESS RELEASE The Allegheny is not a true Mallet The Ancient Brotherhood of Rivet Counters, Genoa Chapter
ALM Posted May 18 Author Posted May 18 2 ore fa, UP844 ha scritto: PRESS RELEASE The Allegheny is not a true Mallet I'm sorry. I thought everybody knew it! The Allegheny is like the Big Boys, the Challengers, and many other articulated, single expansions. The Mallets are double expansion by definition.
sidew Posted May 18 Posted May 18 for me looks very similar to an y6b https://www.reddit.com/r/trains/comments/stnfnx/the_nw_y6_locos_were_some_real_titans_i_love_huge/ 1
sidew Posted May 18 Posted May 18 some technical data like the dimensions of cylinders of Y series https://www.steamlocomotive.com/locobase.php?country=USA&wheel=2-8-8-2&railroad=nw#324
ALM Posted May 18 Author Posted May 18 You are right about the N&W Y6b. The low-pressure cylinders in the first picture look very similar.
p-dehnert Posted May 18 Posted May 18 After enlarging the picture, the plate at the cylinder shows Y6.. or Y5.. . Peter 2
ricomon35 Posted May 18 Posted May 18 2 hours ago, p-dehnert said: After enlarging the picture, the plate at the cylinder shows Y6.. or Y5.. . Peter @p-dehnert Good call. I should have thought of looking for ID marks ! Rico
